解决方案介绍:

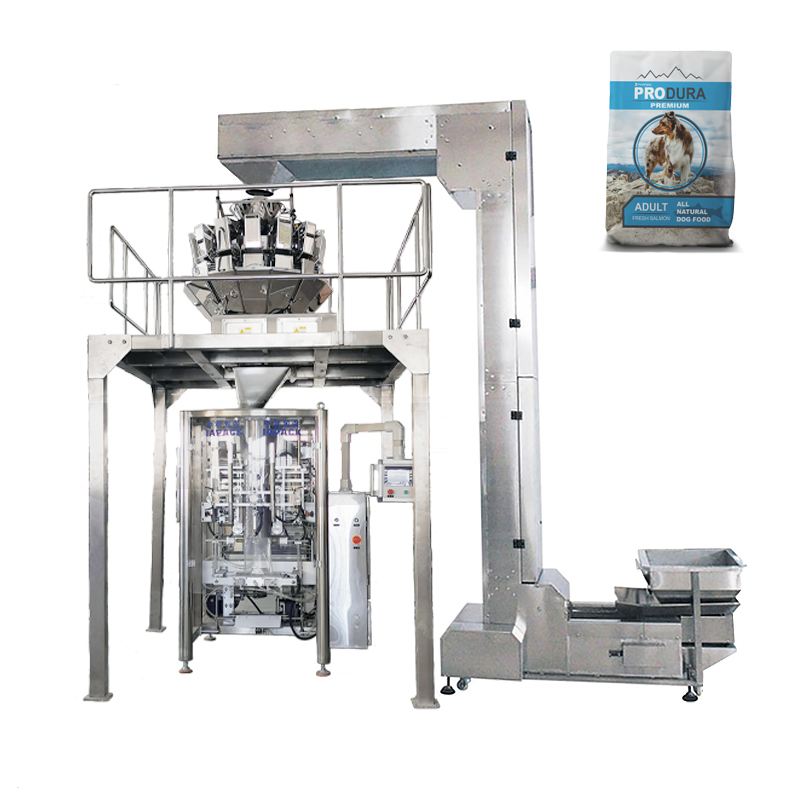

This production line including One set ZL14-1.6L multi head weighing machine .One set ZL520 Vertical bag forming filling sealing ,one set Z type bucket elevator and one set platform and ladder . The whole machine can automatic measuring small granule product and packing into roll film bag .Widely use for packaging rice bean sugar chips and so on.The whole machine made by Stainless Steel 304, This machine equipped with bag-making, cutting, code printing , etc. Siemens PLC and Touch Screen,Panasonic servo motor, Japanese Photo Sensor , Korean Air valve, etc..
拉膜系统采用伺服电机驱动,速度更快。
技术参数:
Weighing Range:100-3000g
Packaging Speed:10-60 bags/min
袋子尺寸:(80-360)*(100-260)mm(L*W)
压缩空气要求:0.6Mpa 0.65m³/min
卷筒外径:400mm
芯内径:75mm
机器重量:600kg
电源:4.5kW 380V±10% 50Hz
