介绍 ：

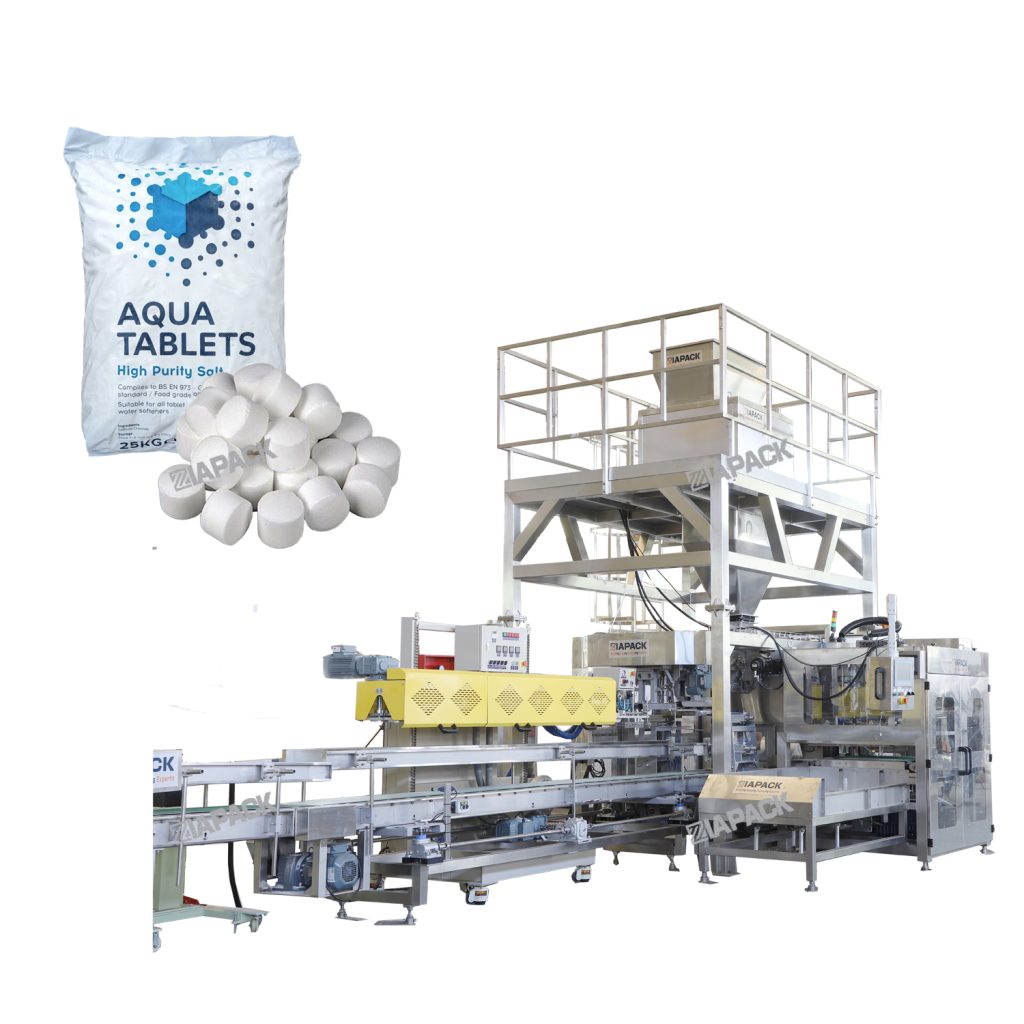

This line is special design for automatic feeding the bulkgraunle product bagging in to 25kg and 50 kg plastic .According the client requirement we also need offer the automatic conveying and palletizing line .The seller completed the design, manufacturing and supply of the production line in strict accordance with the technical requirements and combined with its own packaging line design experience in the sugar industry.
ZL25K-S Automatic double buckets gravity scale system
Principle :
This scales are composed of mechanical components and sensors of the weighing system and a weighing control instrument system. Main machine frame and material contact parts made by sus304.Including vibrating feeding for accuracy feeding and Fast feeding by valve discharge .Install with Mettler Toledo weighing sensor .The whole process of feeding, weighing and unloading loose bags is automatically controlled and self-locking.
特征：
1,Equipped with a standard cabinet,Main electric are China famous brand
2,All equipment is equipped with local operation columns, and the packaging machine is equipped with on-site local control display panels.
3,The weighing box adopts a frame structure, which is stable as a whole and has good sealing performance. The sensors are fixed on the frame of the weighing box. Three weighing pressure sensors per scale are fixed on the frame of the weighing box. It has an independent cover, which is dustproof and anti-collision.Equipped with two dust removal interfaces and breathing holes.
4,The fast discharge door of the weighing hopper adopts a 45º tapered half-open material bottom door.The discharging speed is very fast, and the vibration generated by the cylinder will not affect the weighing accuracy.
5,All mechanical transmissions use dust-proof bearing transmission, and there is no sliding friction between metals.
6,All doors on the scale body are well sealed and there is no dust leakage.
7,All bolts and nuts inside the weighing box are protected by steel wires and cotter pins. (Use a lock nut or drill a hole at the end of the screw, and then thread it with stainless steel wire)
8,The overall external wires and air pipes are all made of closed stainless steel tubes, which are neat and beautiful. There is a dust removal interface on the scale body
9,Parts in direct contact with the material are all made of stainless steel304 and polished
Parameter setting
| 模型 | Net weight sensor type electronic scale (double scale) |
| Feeding method | Gravity blanking |
| 材料 | Material contact surface304 stainless steel, frame protection painted steel |
| 耗气量 | ~200NL/min |
| power | ~2.0kw |
| Weighing capacity | ≥600 bags/hour |
| Set weighing value | Net weight 25-50kg/bag |
| 测量精度 | ±0.1% |
| load cell | 梅特勒托莱多 |
ZLZD750 AUTOMATIC BAGGING MACHINE
该机组由储袋仓、取袋整理装置、装袋机器人、夹袋卸袋装置、推袋装置、袋口引导装置、真空系统、控制系统等组成。
特征
1).对包装袋适应性广。包装机采用取袋方式，即从备袋仓取出包装袋，进行居中定位，将包装袋向前送出，袋口定位，进行预开口，装袋机械手将刀插入袋口打开袋口，然后进行装袋。
2).装袋机械手手臂采用伺服电机驱动，相比大多数其他厂家的气动机械手具有速度快、装袋平稳、无冲击、使用寿命长等优点。
3).夹袋卸料装置在夹袋口处设有两个接近开关，用于检测包装袋口是否完全夹紧以及袋口是否完全打开。确保包装机不会误判，不会将物料洒落在地面上，提高了包装机的使用效率和现场操作环境。
4).包装机的参数设定均在触摸屏上完成。人机友好的触摸屏操作界面，可全面监控整机的运行状态。自动故障显示及处理方法提示，使维护人员能够在最短的时间内处理故障。
5）电磁阀等气动元件以及触摸屏、称重仪表等精密产品均采用密封安装，无外露，适合在多尘环境下使用，保证了设备拥有较长的使用寿命。
6）包装机所有控制元件、执行元件均采用国内外知名公司产品，确保设备长期稳定可靠运行。
7）具有故障自诊断功能和声光报警系统，对出现的任何问题及时报警。
8）简洁、方便的操作平台，方便操作人员对机器进行操作和监控。
技术参数:
包装能力600袋/小时
控制方式 可编程控制器（PLC）
材质：物料接触面采用304不锈钢，框架保护采用304不锈钢等。
Set weighing value Net weight 30kg/package
空气消耗量～600NL/min
电源AC 380V 50Hz～15kw
