介绍 :

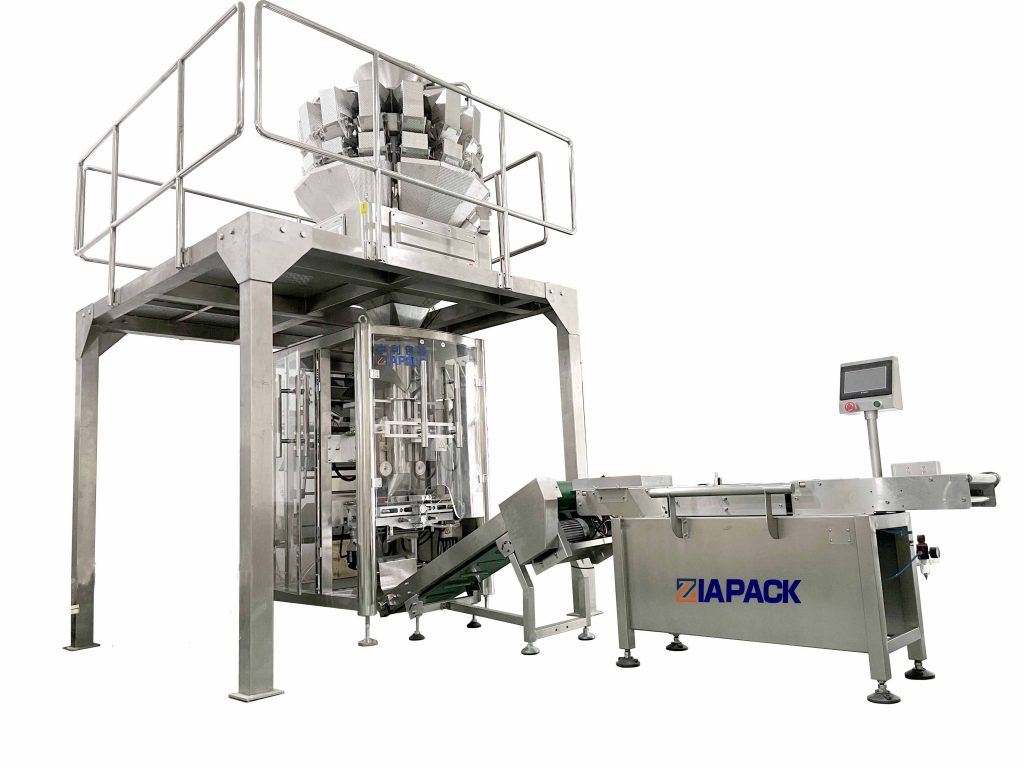

This machine can automatic realize functions of bag- making, filling, sealing, printing, cutting, etc.
four corners are added on the packaging bag based on vertical bag, making the packaging bag have a stronger spatial vision, nicer appearance and more attraction.
This packaging machine adopts import servo motor for film feed and the man-machine interface uses advanced touch screen. Operation simpler and more convenient.All of the components adopts international famous brand, PLC is SIEMENS, servo motor is PANASONIC, touch screen is SIEMENS, cylinder and air vavle is SMC. parts which contact with material 、control cabinet 、main frame are made of stain less steel304
技术参数:
Weighing Range: 1000-5000g
Packaging Speed:20-40 bags/min
Bag size: (80-460)*(100-350)mm(L*W)
压缩空气要求:0.6Mpa 0.65m³/min
卷筒外径:400mm
芯内径:75mm
整机重量:800kg
电源:5.5kW 380V±10% 50Hz
主要特点和特点:
A wide range of pouches: Pillow and Gusset pouches(optional).
高速:20-50包/分钟
操作方便:PLC控制器和彩色触摸屏,触摸屏故障指示。
易于调整:仅需约10分钟即可更换不同的袋子。
频率控制:速度可在该范围内通过频率转换进行调节。
高自动化:在称重和包装过程中无人值守,故障时机器自动报警。
安全和卫生:
没有胶片,机器会报警。
机器报警并在气压不足时停止。
安全开关,安全开关,机器报警和安全防护装置打开时停止的安全防护装置。
卫生结构,产品接触部位均采用sus304不锈钢。
