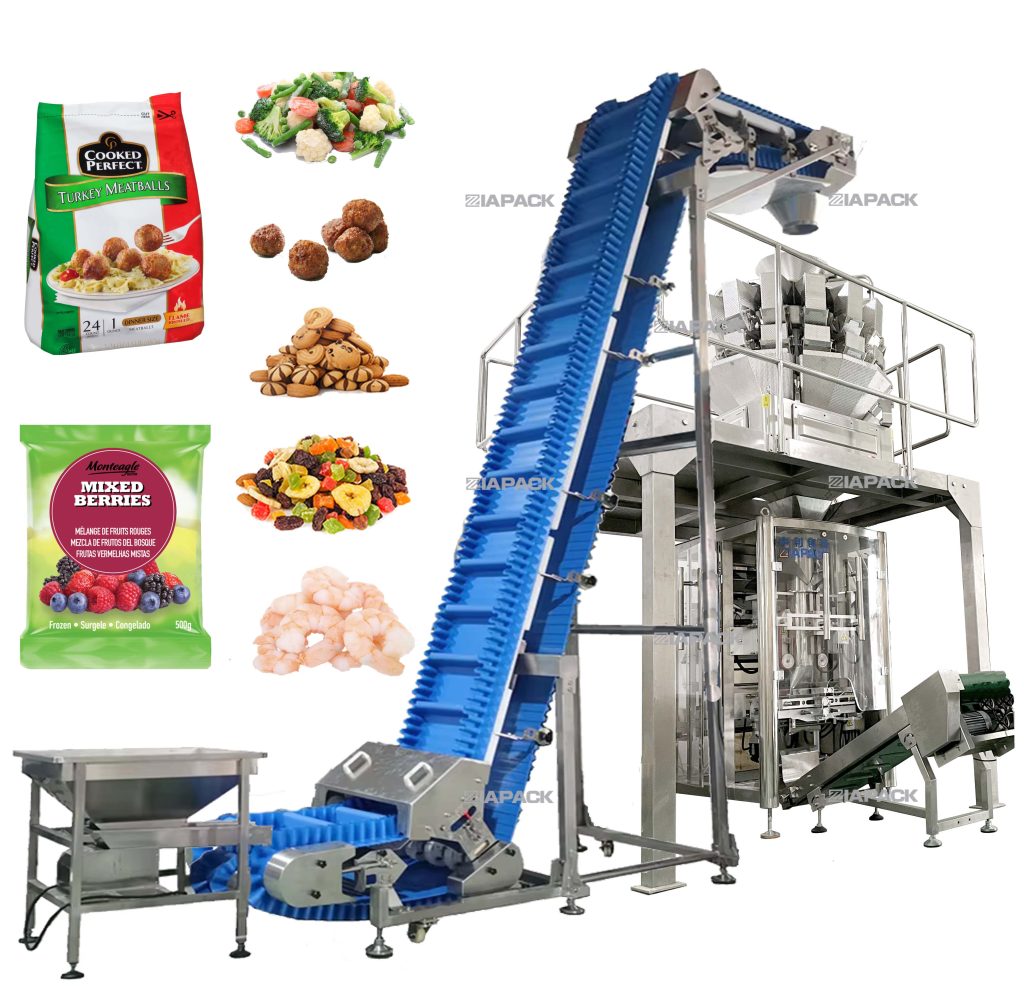

Automatic frozen food weighing filling packaging machine

介绍 ：

This unit machine is special design for packaging frozen food like shrimp ,meat ball,Chicken pieces dumpling and Toufu in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .

应用：

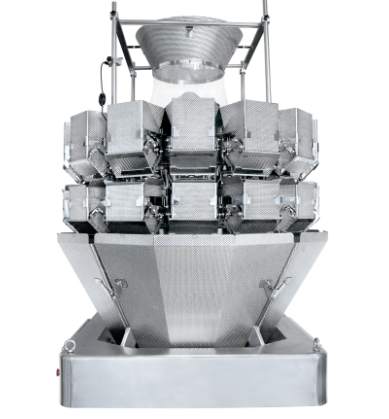

This weighting machine r is suitable for weighing different frozen food  like frozen fishes, fruit, frozen dumplings, rice dumplings, etc.,Adopt Dimple Plate and waterproof electric cabinet .Can Work in an environment with high humidity.

特征：

1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No products auto pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, can make the feeding more uniform.
5. 15 languages available for global markets.
6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

Mechanical  Character:

1. Ip65 cabinet design, dimple plate for food contact parts.
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

产品规格：

ZL520 VFFS BAG FORMING FILLING PACKAGING MACHINE

介绍 ：

本机可自动实现制袋、充填、封口、印刷、分切等功能。本机可自动完成制袋充填封口。

该包装机采用进口伺服电机送膜，人机界面采用先进的触摸屏。操作更简单方便。所有部件均采用国际知名品牌，PLC为西门子，伺服电机为松下，触摸屏为西门子，气缸和气阀为SMC。与物料接触部分、控制柜、主机架均采用304不锈钢制造

技术参数：

包装速度(MAX): 20-50bags/min

袋型: 枕袋.插角袋

Bag size: bag width 60-250mm bag length 80-350mm

耗气量：0.6MPa 350L/min

电力要求：380V/5.5 kW50 Hz
