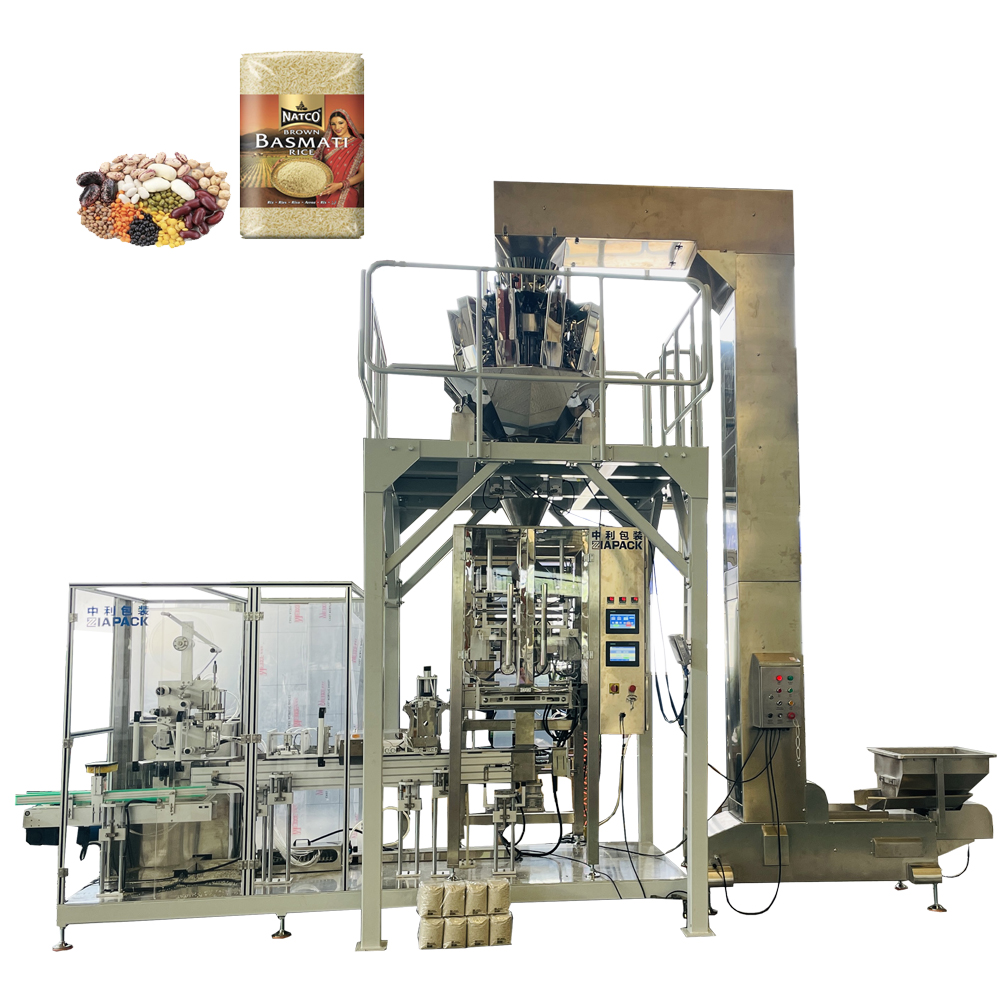

ZL520 automatic bag forming filling sealing and top labeling machine
介绍 ：
This machine are special design for packing granule product into square bottom bag .It is widely use for packing wheat rice bean grain and similar product .This machine unit are including ZLB500 Volumetric cup dosing system ,one set ZL420 vertical bag forming filling machine .one set ZLYB1000 linear bag forming sealing and labeling machine and one set output conveyor .It can make the nice bag with square bottom and fold the bag mouth and labeling .So the finished bag have a nice shape ,pretty outlook .
机器的详细信息

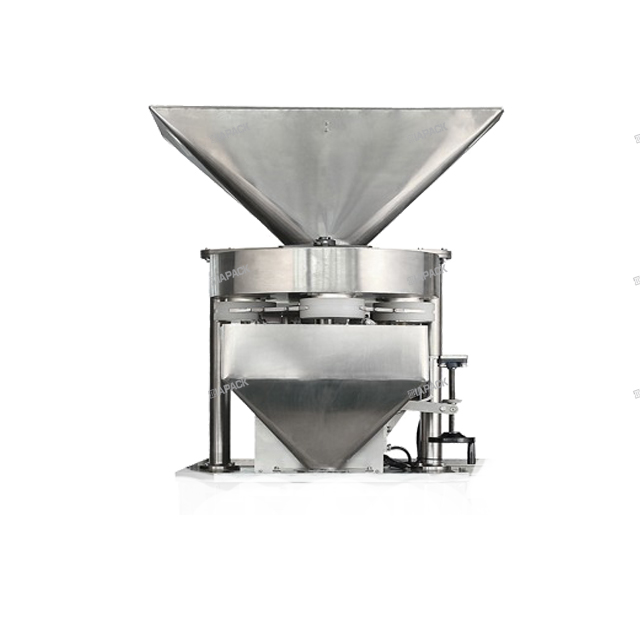

1,ZLB500 Volumetric cup dosing system with cover
The whole machine made by SUS304.Adopt China famous brand motor .Volume can be adjust from 75%-100% .Including the vibrate feeding device which special design for wet salt and mixed device.
技术参数：
Speed: 40-60time/min
Power :220V 50HZ 0.75KW
2,ZL420 Vertical bag forming filling sealing packaging machine
本机单元专为小袋包装而开发，本机可独立完成制袋、充填（可选充气或排气）、封口（可选打孔）打码、计袋等，采用薄膜自动纠偏装置。机架与物料接触部分采用SUS304。PLC和触摸屏采用西门子品牌。采用松下伺服电机进行水平密封，快速稳定。气动部分采用Air Tac品牌。主要电气元件采用欧姆龙和施耐德易于操作的品牌
技术参数
称量范围：500-1000克
Packaging Speed:18-20 bags/min for 1kg 20-25bags/min for 500gram
Bag size: (80-280)*(60-180)mm(L*W)
压缩空气要求：0.6Mpa 0.65m³/min
卷筒外径：400mm
芯内径：75mm
3,ZLYB1000 linear model bag forming sealing and labeling machine
本机专为制作顶部贴标的插角袋而设计。装满产品的袋子落在本机上后，本机将提袋，经过一次袋口折叠，然后贴标。机器框架由SUS304 .PLC及触摸屏采用西门子品牌，气动元件采用SMC品牌，主要电器元件采用欧姆龙和施耐德品牌。本机与自动包装机配合使用，达到成品袋顶贴标。本机可自动达到功能标签分离，标签发送。标签检测器和标签压合。
