15公斤木颗粒VFFS袋成型灌装封口装袋机

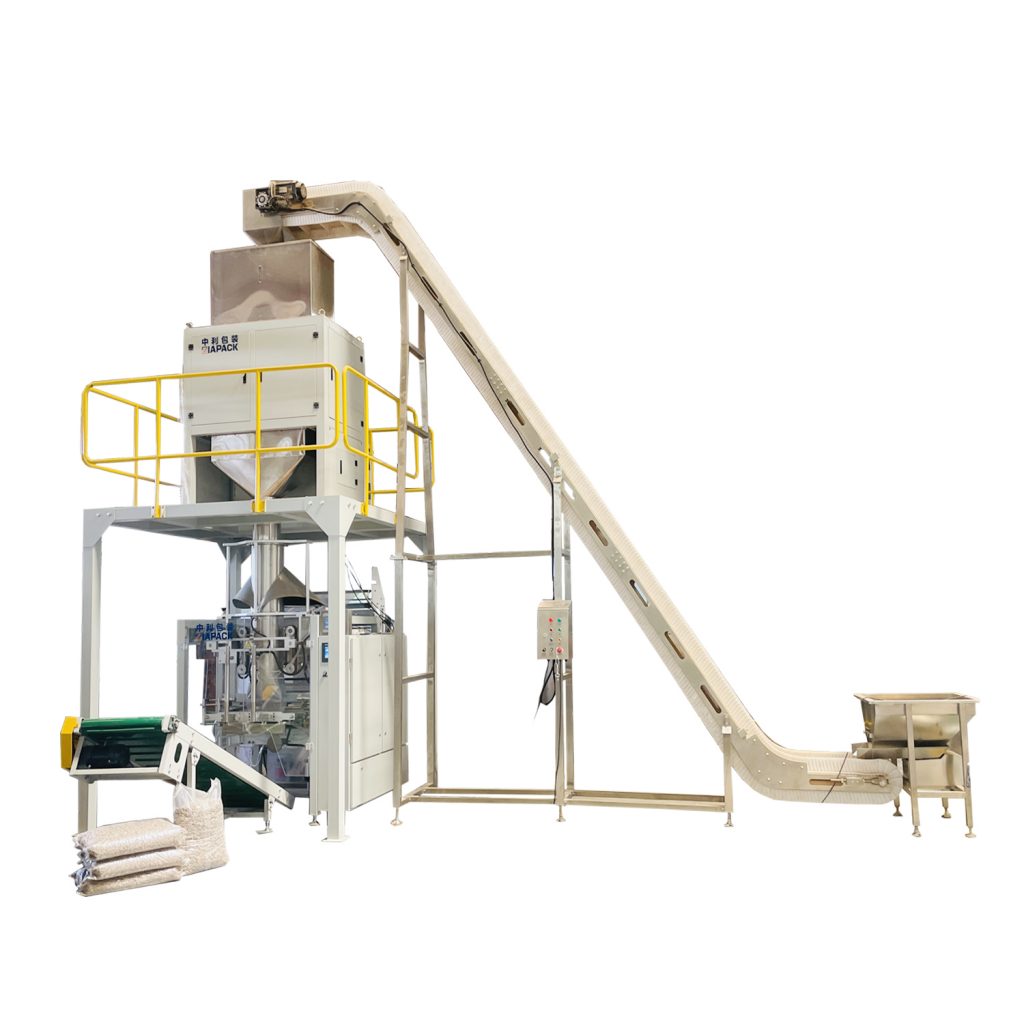

Automatic15-20 kg wooden pellets bag forming filling packaging machine

介绍 ：

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

技术参数：

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

压缩空气要求：0.6Mpa 0.65m³/min

Reel outer diameter: 450mm

芯内径：75mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

主要特点和特点：

• A wide range of pouches:  Pillow and Gusset pouches.
• 高速：20-50包/分钟
• 操作方便：PLC控制器和彩色触摸屏，触摸屏故障指示。
• 易于调整：仅需约10分钟即可更换不同的袋子。
• 频率控制：速度可在该范围内通过频率转换进行调节。
• 高自动化：在称重和包装过程中无人值守，故障时机器自动报警。
• 安全和卫生：
• 没有胶片，机器会报警。
• 机器报警并在气压不足时停止。
• 安全开关，安全开关，机器报警和安全防护装置打开时停止的安全防护装置。
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

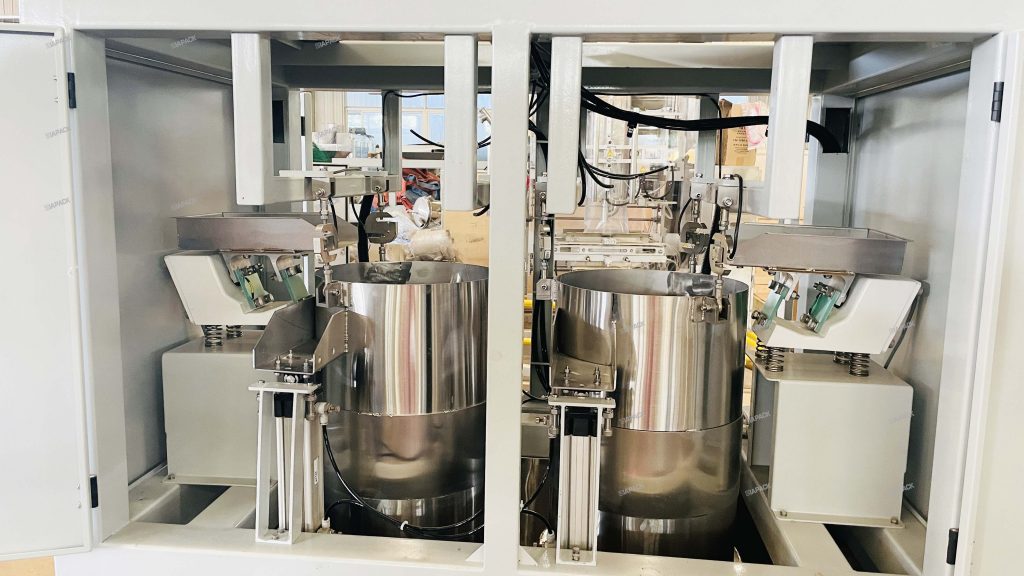

• ZLC2-15k double bucket weighing machine

  介绍 ：

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  特征：

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
